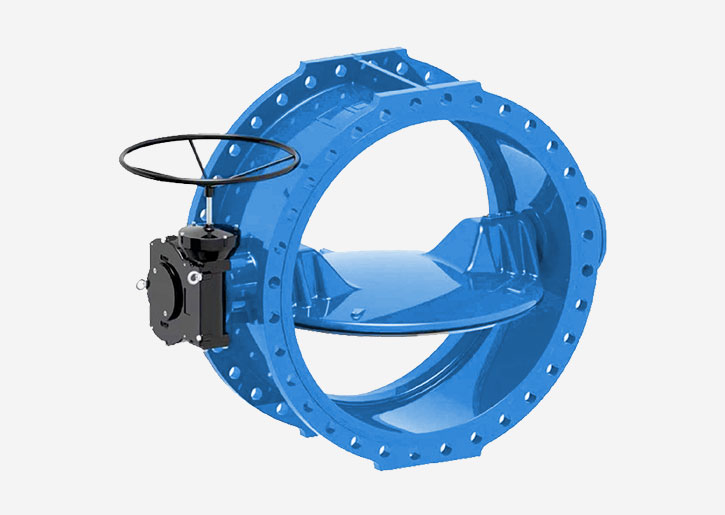

Soft Seated Gear Butterfly Valve
The Axis Manufactured Butterfly Valve serves as an ideal alternative to sluice valves in water distribution systems. This highly reliable valve finds application in power plants and utility water line systems. The bi-directional valve features tight shut-off sealing capability, enabling it to hold vacuum to rated pressure in either direction. It is suitable for both on/of f and throttling duties.
- The valve is designed with a 2-piece shaft to operate with lower torque. The selection of seat and disc materials is based on media conditions and service requirements.
- The operating temperature range is -20°C to 180°C, depending on the seat material of construction (MOC).
- The valve is adaptable to fit between companion flanges of all popular flange standards for the wafer-style body.
- The valve can be supplied with matching pneumatic or electrically operated actuators.
- Customized valves can be used to handle air, gases, and vacuum services.
- The valve is available in sizes ranging from DN50 to DN2000, with #150, #300, PN 6, PN 10,PN 16, PN 20 and PN 40 pressure ratings, and features flanged ends.

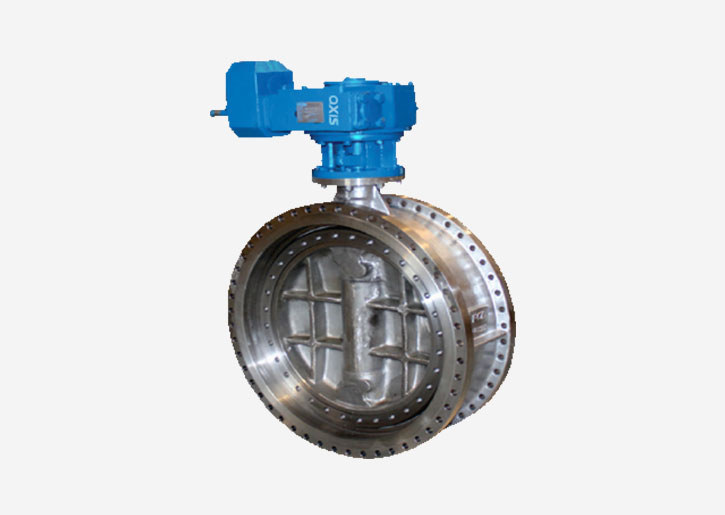

Metal Seated Gear Operated Butterfly Valve
Axis developed a metal-seated butterfly valve with lightweight sealing capabilities, specifically designed for water and oil distribution systems. This customized valve can also be used to handle air, gases, and vacuum services. The valve is manufactured from a range of materials, including carbon steel (CS), cast iron (CI), stainless steel (SS), and aluminum bronze (AL). The valve is available in sizes ranging from DN50 to DN2000, with pressure ratings of #150, #300, PN 6, PN 10, PN 16, PN 20 and PN 40 and features flanged ends.The elimination of possible electrolytic corrosion is achieved by avoiding the use of a taper pin to connect the disc and shaft.
- The selection of seat and disc materials is based on media conditions and service requirements.
- The operating temperature range is -20°C to 180°C.
- The valve is adaptable to fit between companion flanges of all popular flange standards for the wafer-style body.
- The valve has excellent adaptability for actuated operation through standardized top flange mounting dimensions for actuator fitment (ISO 5211 Part II).
- The valve can be supplied with a matching electrically operated actuator.

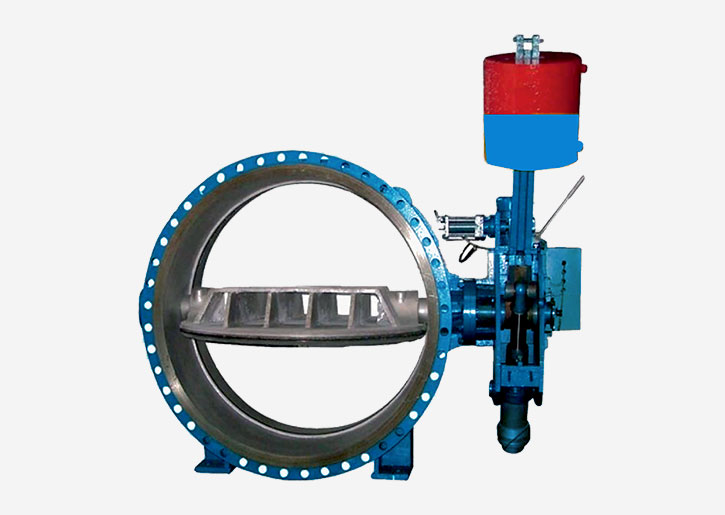

Soft Seated Hydraulic Actuator with Counter Weight Butterfly Valve
The Axis Manufactured Butterfly Valve serves as an ideal alternative to sluice valves in water distribution systems. This highly reliable valve finds application in power plants and utility water line systems. The bi-directional valve features tight shut-off sealing capability, enabling it to hold vacuum to rated pressure in either direction. It is suitable for both on/of f and throttling duties.
- Flexible operation: Assembled to accommodate both remote/automated control and manual operation.
- Complete flow control system: Can be supplied with hydraulic actuator and various accessories, including limit switches, manual overrides, and positioners.
- Operating temperature range: -20 °C to 180 °C, depending on the seat material of construction (MOC).
- Size and pressure ratings: Available in sizes DN250 to DN2000, with #150, #300, PN 6,PN 10, PN 16, PN 20 and PN 40 pressure ratings, and flanged ends.
- Customizable seat and disc materials: Selected to suit specific media conditions and service.
| Design Standards | ASME B16.34 / API 609 / EN 593 / BS 5155 / MSS SP 67 / ISO 5752 / AWWA C504 / AWWA C516 |
|---|---|
| Size Range | DN50 to DN2000 [2" to 80"] |
| Pressure Rating | #150 / #300 I PN6 / PN10 / PN16 / PN20 / PN40 |
| Construction Type | Wafer type / Lug Type / Flange type |
| Design Features | Centric, Double Offset, & Triple Offset |
| Operator Type | Lever, Gear, Electrical Actuator & Pneumatic Actuator |
| Top Mountain Flange | ISO 5211 |
| Face to Face Standard | API 609 / BS 5155 / BS EN 558 / AWWA C504 / AWWA C516 / ISO 5752 |
| End Connection | ASMF B16.5 / BS 5155 / API 609 |
| Testing Standard | API 598 / BS EN 12266 - 1 / BS 6755 - 1 |
Materials
- Carbon Steel/ Stainless Steel/ Duplex Stainless Steel/ Super Duplex Stainless Steel/ Aluminum Bronze/ Cast Iron / Ductile Iron
