Check Valve

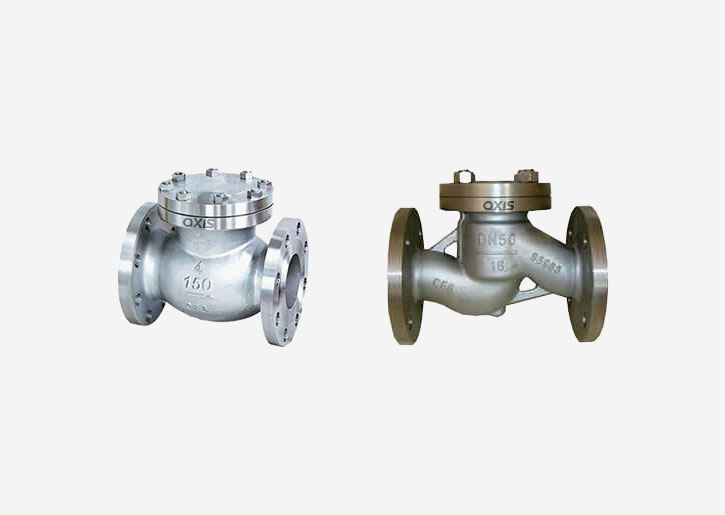

Swing-type & Lift type check valves come with metal seats. These valves are installed in pumping applications to prevent back flow and can be used for both drinking water and wastewater. The disc is connected to the shaft via a flexible bush, which allows the disc and valve seat to adjust exactly. These valves are available with either closed bushings or protruding shaft ends, where a lever with a weight or spring can be fitted to mitigate pressure surges. They can be installed in horizontal or vertical upward flow piping.
- Fine-grained metal seats.
- Uni-directional valve with tight shut of f sealing capability.
- The valve size is available in DN25 to DN400, with flanged ends, and has #150, #300, #600 and #800 pressure ratings.
- Adaptability to fit between companion flanges of all popular flange standards.
| Design Standards | ASME B 16.34 / API 594 / API 6D / BS 1868 |
|---|---|
| Size Range | DN25 to DN400 [1 /2" to 16"] |
| Pressure Rating | #150 / #300 I #600 /#800 |
| Construction Type | Horizontal Mounting, Bolted Cover & Spring Loaded |
| Design Features | Swing Type & Lift Type |
| Face to Face Standard | SME B16.10 / BS EN 558 / API 594 / ISO 5752 |
| End Connection | Flanged End, Butt Weld, Socket Weld & Screwed End |
| Testing Standard | API 598 / BS EN 12266-1 / BS 6755-1 |
- Carbon Steel, Stainless Steel, Duplex SS, Super Duplex, Stainless Steel/ Aluminum Bronze
