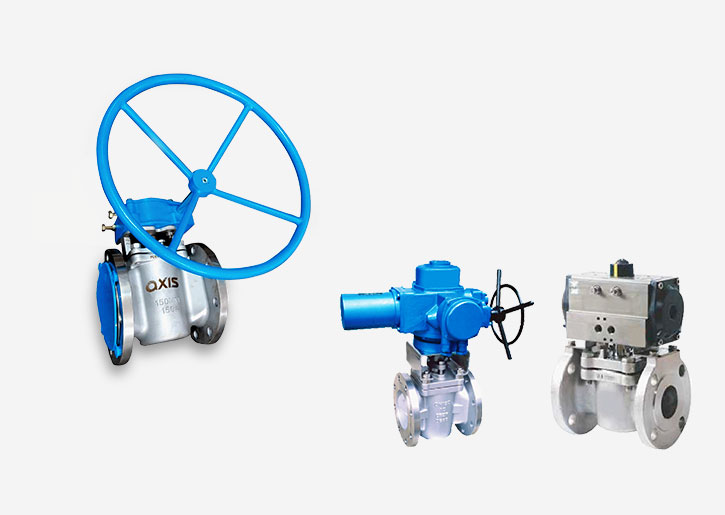

Plug Valve
Plug valves serve as efficient on - off valves with flow in either direction. Plug valves are valves with cylindrical or conically tapered "plugs" which can be rotated inside the valve body to control flow through the valve. The plugs in plug valves have one or more hollow passageways going sideways through the plug, so that fluid can flow through the plug when the valve is open.
- Mirror-finished stainless steel stem.
- High-integrity stem sealing.
- Blowout-proof stem design.
- Bi-directional valve with tight shut-off sealing capability.
- Adaptability to fit between companion flanges of all popular flange standards.
- The valve can be supplied with a matching pneumatic actuator, operable along with l imit switches, positioners, and other accessories. These components can be combined to form a complete flow control system.
- The valve is available in sizes ranging from DN25 to DN150, with pressure ratings of #1 50, # 3 00, #600, #800 and features flanged ends.
| Design Standards | ASME B 16.34 / API 594 / API 6D / BS 1868 |
|---|---|
| Size Range | DN 25 to DN 150 [1" to 6"] |
| Pressure Rating | #150 / #300 I #600 I #800 |
| Construction Type | Rectangular Port & Round Port |
| Design Features | Lubricated & Non Lubricated |
| Operator Type | Lever, Gear, Electrical Actuator & Pneumatic Actuator |
| Face to Face Standard | ASME B16.10 / ISO 5752 / BS EN 558 |
| End Connection | Fanged End, Butt Weld End, Socket Weld & Screwed End |
| Testing Standard | API 598 / BS EN 12266-1 / BS 6755-1 |
| Top Mounting Flange | ISO 5211 |
- Carbon Steel/ Stainless Steel/ Duplex Stainless Steel/ Super Stainless Steel / Aluminum Bronze
